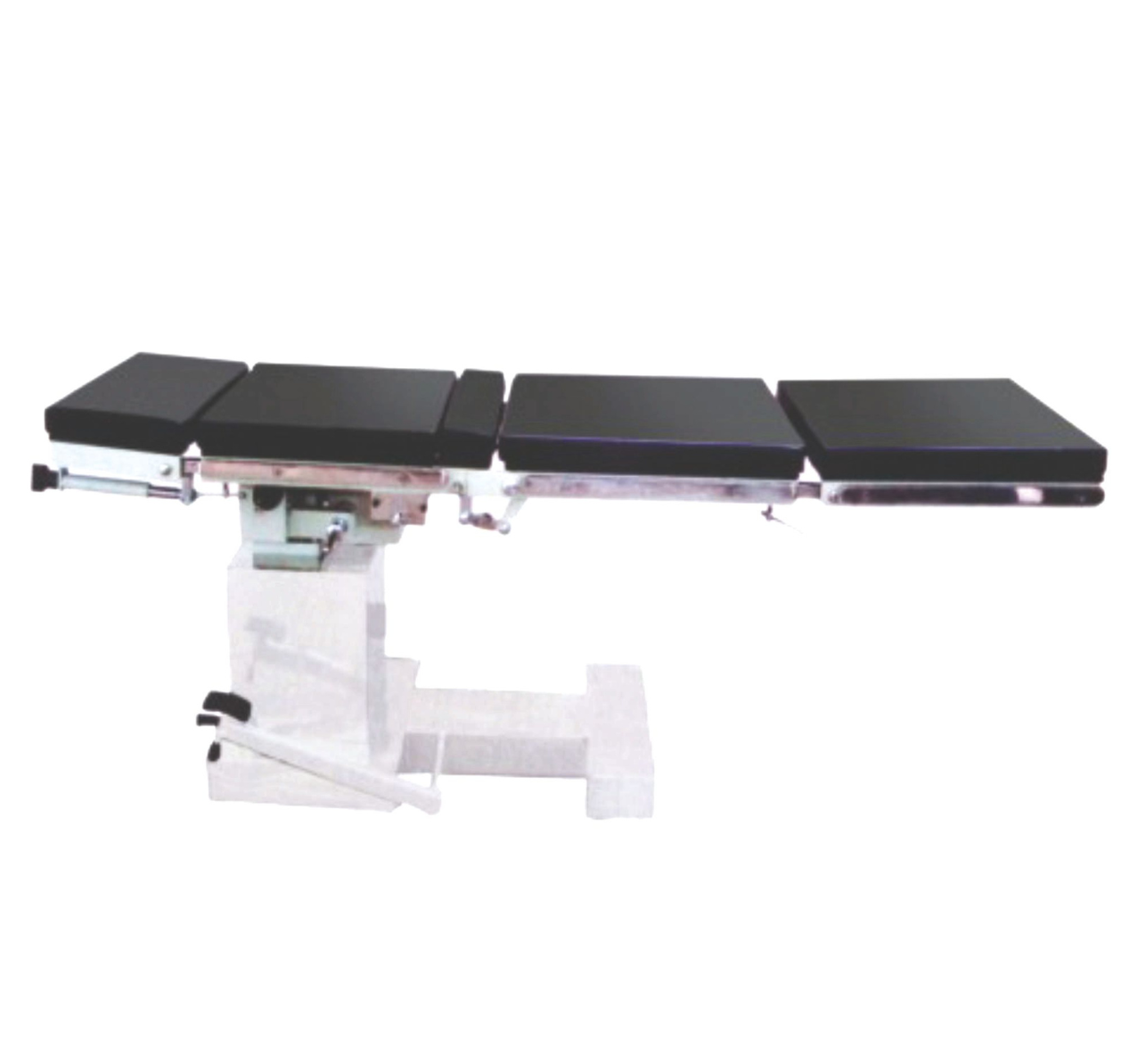

O.T. Table Hydraulic C-Arm Compatible with Ortho Attachment

Description

• Four Sectional radiolucent top
• Eccentrically positioned top for maximum access for
  movement of C-Arm image intensier
• Base and cover made of heavy & hygienic stainless steel
  sheet
• Mobile on smooth running castors and oor locking
  system for stability
• Leg section and head section are interchangeable

Technical data:

• Overall Length of Table Top : 1950 mm
• Overall width of Table Top : 500 mm
• Up-Down Movement : 770-1220 mm
• Kidney Section up : 150 mm
• Trendelenburg Position : 25
• Trendelenburg & Reverse Position : 25
• Lateral Tilt : 20 (Both side)
• Flex Relex Position : 30 / 220
• Leg Section : 90 down manua

Orthopaedic Attachment’s Features:

• Specially designed for intra operative x-rays image intensier
• Removable pelvis rest and x-ray translucent pelvis stem
• Stirring instruments allow fexion/ raising of legs and stirring ball
  joints locked from foot-end
• Padded orthopaedic knee crutches provide support of
  the patient
• Two Traction devices on sliding spot with ball joint allowing exion
  and rotations of foot, with traction shoes with metallic sole
